Energy Saving Ball Mill

Energy Saving Ball Mill

Production capacity: 0.5-500t/h

Feeding size: ≤25mm

Material handling: Cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

Features

    Introduction to Energy Saving Ball Mill

    Energy saving ball mill is key equipment for re-crushing materials after being primarily crushed. It has been widely used for grinding a wide range of materials such as cement, silicate, new type building materials, fireproofing, chemical fertilizer, black and non-ferrous metal and glass ceramics. It can realize dry type or wet type grinding for all kinds of ores and other grindable materials.

    After installation and inspection, the trial operation without load should be carried out by skilled operators who strictly abide by safe operation rules.

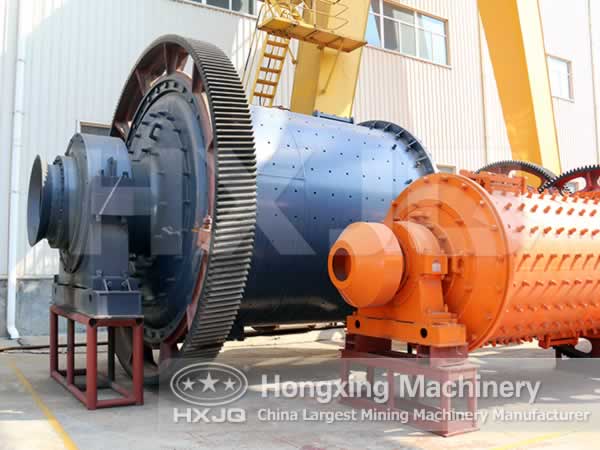

    Energy Saving Ball Mill

    Working Principle of Energy Saving Ball Mill

    The energy saving ball mill, a grate one, is a horizontal cylinder rotating device driven by gears with two silos. The materials get into the first silo through the feeding quill shaft from the feeding device spirally and evenly. There are ladder lining board and corrugated lining board in the first silo loaded with steel balls of different sizes. The centrifugal force produced by the rotation of the cylinder raises the steel balls to a certain height which then fall down, thus making thumping and abrading to the materials. After the coarse grinding in the first silo, the materials get into the second silo through the monolayer partition panel with flat lining board embedded with steel sections for further crushing. The powder of the materials will be discharged from the unloading board to finish the grinding work.

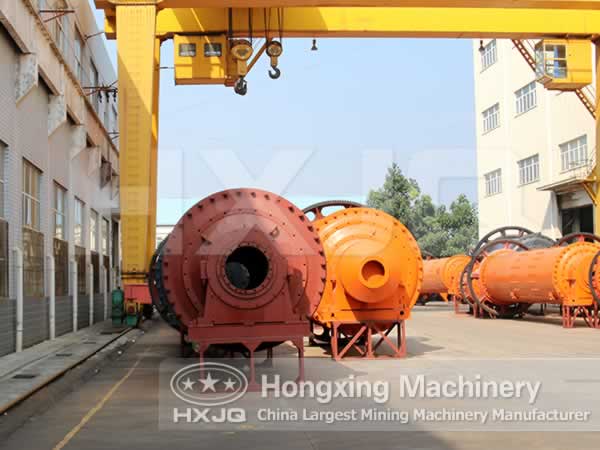

    Energy Saving Ball Mill

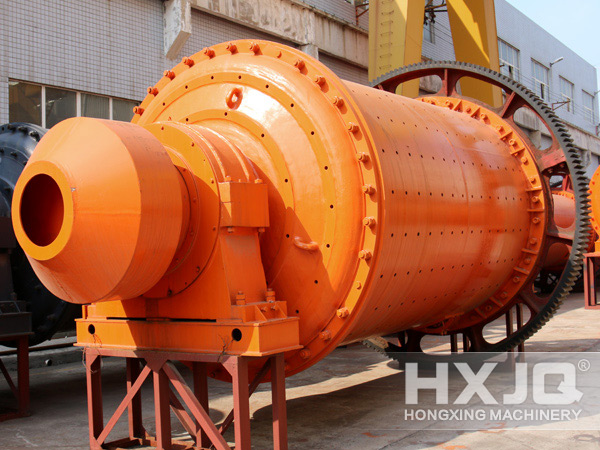

    Energy Saving Ball Mill

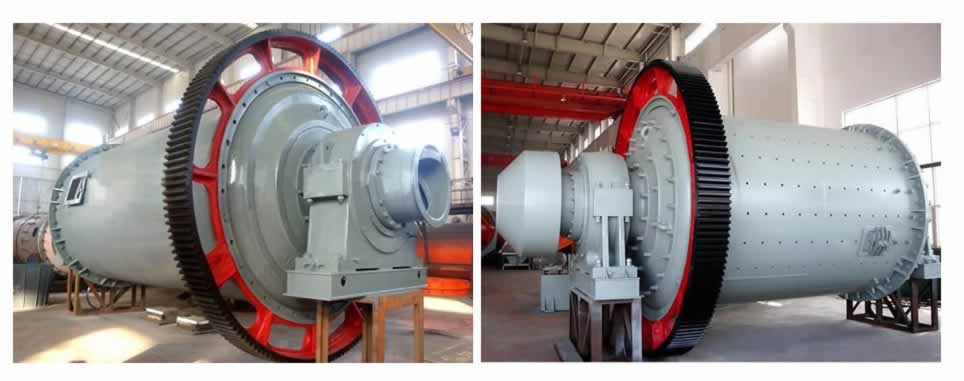

    Energy Saving Ball Mill

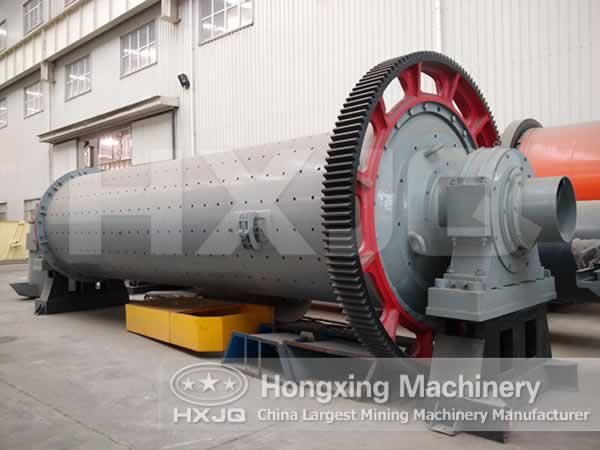

    Energy Saving Ball Mill

    Technical Parameters of Energy Saving Cone Ball Mill

    Model Shell rotation speed
    (r/min)
    Ball load
    (t)
    Feeding size
    (mm)
    Discharging size
    (mm)
    Capacity
    (t/h)
    Motor power
    (kw)
    Total weight
    (t)
    Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
    Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
    Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
    Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
    Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
    Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
    Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
    Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
    Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
    Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
    Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
    Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
    Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
    Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
    Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
    Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
    Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
    Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
    Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
    Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
    Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
    Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
    Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
    Ф3200×4500 18 65 <25 0.074-0.4 As per process conditions 630 149
    Ф3600×4500 17 90 <25 0.074-0.4 As per process conditions 850 169
    Ф3600×6000 17 110 <25 0.074-0.4 As per process conditions 1250 198
    Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
    Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
    Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
    Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
    Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
    Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
    Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
    Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525
