Ore dressing
Flotation Machine

Flotation Machine

Supply Ability: 15 Set/Sets per Month

Processing ability: 0.2-16m³/min

Material handling: non-ferrous metals, ferrous metals, precious metals, non-metallic mineral and chemical raw materials, recovery of useful minerals.

Features

    Flotation Machine Application

    Flotation machine (also called flotation separator) is applicable for the separation of nonferrous metal, ferrous metal and nonmetal, such as fluorite and talc.

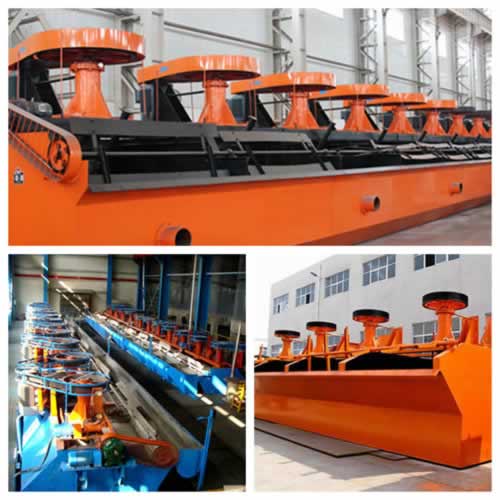

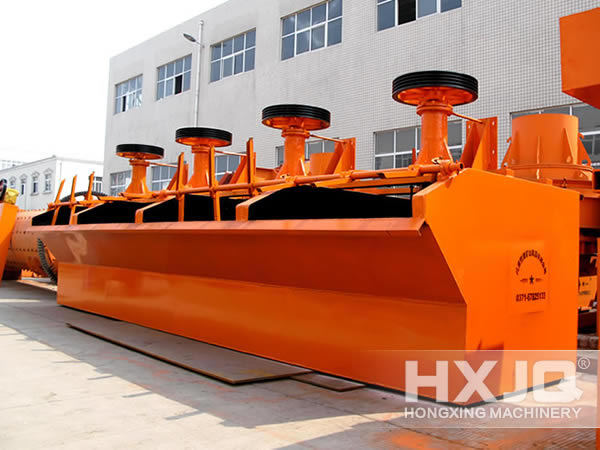

    Flotation Machine

    Working Principle

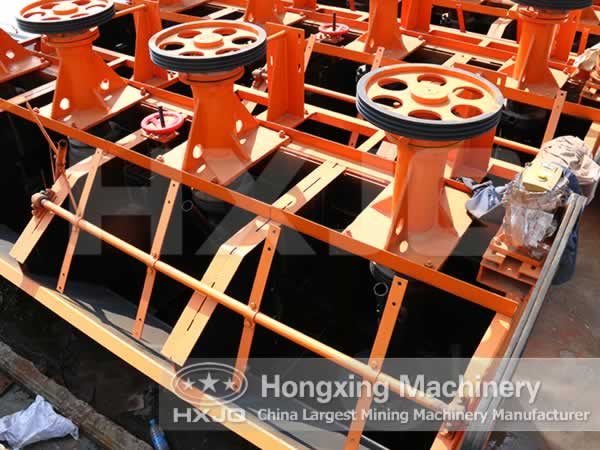

    The impellers are driven by V-belts, which can bring the centrifugal effect to form the negative pressure. On the one hand, they inhale sufficient air to mix with ore pulp; on the other hand, they stir ore pulp and mixes with medication to form the mineralized froth.

    When flotation cell works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low pressure air sent by fan is transported to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impellers, and then goes to the trough. When the froth rises to the stable level, after the enrichment processing, it overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impellers for the remixing with air. The remaining slurry flows to the next trough until it becomes residue.

    Operating Instruction

    Check the bolts before starting the machine and use hands instead of impellers in order to prevent the sediment from adding the burden of electromotor. Adjust the height of strobe carefully to keep the stabilization of liquid level and scrape the mineralized froth to the launder. The impellers and stators should keep a distance and should be changed when they are worn. The bearing in the pump should be maintained every three months.

    Technical Parameters of SF Flotation Machine

    Model
    SF0.37
    SF0.7
    SF1.2
    SF2.8
    SF4
    SF8
    Trough capacity(m³)
    0.37
    0.7
    1.2
    2.8
    4
    8
    Impeller diameter(mm)
    300
    350
    450
    550
    650
    T60
    Production capacity (m³/min)
    0.2-0.4
    0.3-0.9
    0.6-1.2
    1.5-3.5
    0.5-4
    4-8
    Impeller rotation speed (r/min)
    352
    400
    312
    268
    238
    191
    Motor
    Model
    ①Y90L-4
    ①Y100L2-4
    ①Y132M2-6
    ①Y160L-6
    ①Y180L-6
    ①Y250M-8
    ②Y90S-4
    ②Y90S-4
    ②Y90S-4
    ②Y90S-4
    ②Y90L-4
    ②Y100L-6
    Power(kw)
    ①1.5
    ①3
    ①5.5
    ①11
    ①15
    ①30
    ②1.1
    ②1.1
    ②1.1
    ②1.1
    ②1.5
    ②1.5
    Dimensions(mm)
    700×700×750
    900×820×950
    1100×1100×1100
    1700×1600×1150
    1850×2050×1200
    2200×2900×1400
    Single trough weight(kg)
    468
    600
    1373
    2338
    2660
    4486

    Technical Parameters of BF Flotation Machine

    Model Trough cubage
    (m³)
    Inside dimensions
    (L×W×H)
    (m)
    Air suction amount
    (m³/㎡·min)
    Power
    (kw)
    Motor model Processing capacity
    (m³/min)
    Single trough weight
    (kg)
    BF-0.37 0.37 0.74×0.74×0.75 0.9~1.05 1.5 Y90L-4 0.2~0.4 470
    BF-0.65 0.65 0.85×0.95×0.9 0.9~1.10 3.0 Y132S-6 0.3~0.7 932
    BF-1.2 1.2 1.05×1.15×1.10 1.0~1.10 5.5
    4.0
    Y132M2-6
    Y132M1-6
    0.6~1.2 1370
    BF-2.0 2.0 1.40×1.45×1.12 1.0~1.10 7.5 Y160M-6 1.0~2.0 1750
    BF-2.8 2.8 1.65×1.65×1.15 0.9~1.10 11 Y180L-8 1.4~3.0 2130
    BF-4.0 4.0 1.9×2.0×1.2 0.9~1.10 15 Y200L-8 2~4 2585
    BF-6.0 6.0 2.2×2.35×1.3 0.9~1.10 18.5 Y225S-8 3~6 3300
    BF-8.0 8.0 2.25×2.85×1.4 0.9~1.10 22
    30
    Y225M-8
    Y250M-8
    4~8 4130
    BF-10 10 2.25×2.85×1.7 0.9~1.10 22
    30
    Y225M-8
    Y250M-8
    5~10 4660
    BF-16 16 2.85×3.8×1.7 0.9~1.10 37
    45
    Y280S-8
    Y280M-8
    8~16 8320
    BF-20 20 2.85×3.8×2.0 0.9~1.10 37
    45
    Y280S-8
    Y280M-8
    10~20 8670
    BF-24 24 3.15×4.15×2.0 0.9~1.10 45 Y280M-8 12~24 8970
