Spiral Classifier

Spiral Classifier

FOB Price: US $2,000 - 100,000 / Set
Processing Ability: 770-2800T/24H
Rotation Rate: 2.5~6 r/min
Materials: limestone, talc, graphite, barite, mica, kaolin, etc.

Features

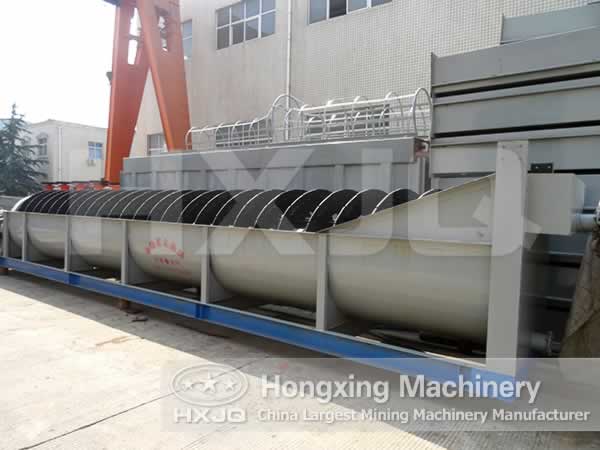

    Introduction to Spiral Classifier

    The screw classifier is also called the spiral classifier, spiral separator or China spiral classifier. There are mainly four types of classifiers, namely high weir single spiral concentrator, high-weir dual spiral separator, sinking single spiral separator and sinking dual spiral separator.

    Spiral Classifier

    Classification and Application of Sprial Concentrator

    The screw classifier is also called the spiral classifier, spiral separator or China spiral classifier. There are mainly four types of classifiers, namely high weir single spiral separator, high-weir dual spiral separator, sinking single spiral separator and sinking dual China spiral separator.

    The spiral concentrator can form a closed circuit with the ball mill to distribute the ores, grade slurry and deslime mud in ore and metal dressing process.

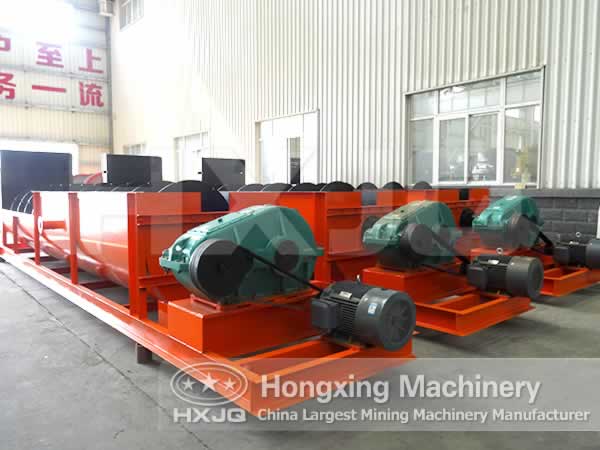

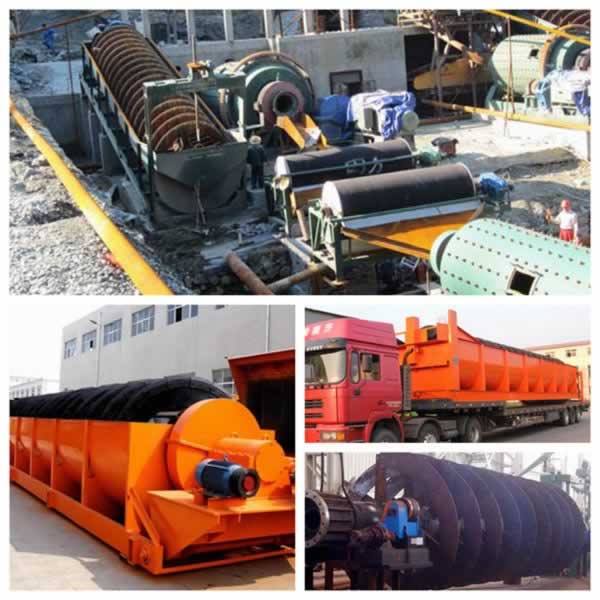

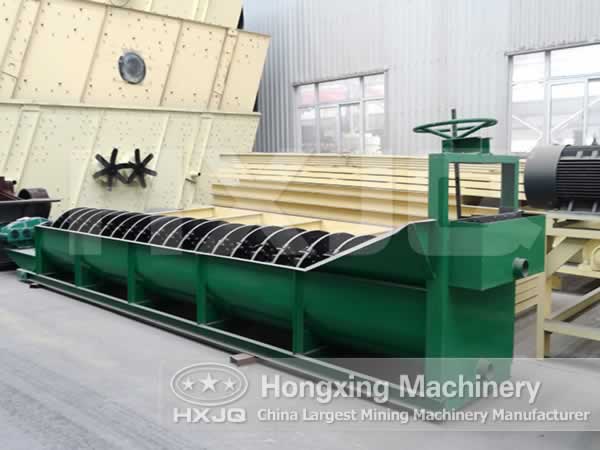

    Working Principle of Screw Classifiers

    Spiral Classifier

    Spiral Classifier

    Spiral Classifier

    According to the principle that different particle sizes with different proportion have certain terminal velocity, the fine particles float on the water and flow out while the coarse particles sink to the bottom and then they will be pushed upward and discharged. The powders will be filtered, with the substandard particles screwed into the feeding port by the spiral vanes and the fine ones discharged from the overflow pipe. The head of the screw axis and the shaft adopt the pig iron cover, which is wear-resisting and durable. There are manual and electric lifting devices separately.

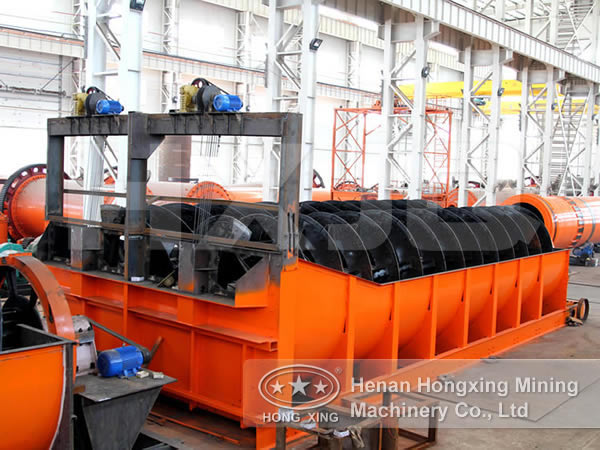

    Structure of Spiral Concentrator

    The spiral concentrator is composed of the transmission device, spiral, trough, lifting mechanism, lower bearings and discharge valve.

    Spiral Classifier

    Screw Classifiers for Sale/ Screw Classifiers Price – Hongxing Brand

    We produce high weir type, single and double spiral, and immersed single and double spiral separator. Our spiral separators are widely used in the distribution of ore in closed circuits with ball mills, grading ore in gravity mills, and desliming and dehydrating. Henan Hongxing is a professional classifiers manufacturer in China. We will provide you with best China spiral classifier and best spiral classifier price.

    Technical Parameter of Spiral Classifier

    Model Spiral
    Diameter
    (mm)
    Trough
    Length
    (mm)
    Spiral
    rotate
    speed
    (r/min)
    Processing
    capacity(t/d)
    Motor
    Power
    (kw)
    Dimensions
    (mm≤)
    Sand
    -return
    Overflow For
    driving
    For
    lifting
    Length Width Height
    FG-3 300 3000 12-30 80-150 20 1.1 ---- 3850 490 1140
    FG-5 500 4500 8-12.5 135-210 32 1.1 ---- 5430 680 1480
    FG-7 750 5500 6-10 340-570 65 3 ---- 6720 980 1820
    FG-10 1000 6500 5-8 675-1080 110 5.5 ---- 7590 1240 2380
    FC-10 8400 675-1080 85 7.5 ---- 9600 1240 2680
    FG-12 1200 6500 4-6 1170-1870 155 7.5 2.2 8180 1570 3110
    FC-12 8400 1170-1870 120 7.5 2.2 10370 1540 3920
    2FG-12 6500 2340-3740 310 15 4.4 8230 2790 3110
    2FC-12 8400 2340-3740 240 15 4.4 10370 2790 3920
    FG-15 1500 8300 4-6 1830-2740 235 7.5 2.2 10410 1880 4080
    FC-15 10500 1830-2740 185 7.5 2.2 12670 1820 4890
    2FG-15 8300 2280-5480 470 15 4.4 10410 3390 4080
    2FC-15 10500 2280-5480 370 15 4.4 12670 3370 4890
    FG-20 2000 8400 3.6-5.5 3290-5940 400 11-15 3 10790 2530 4490
    FC-20 12900 3210-5940 320 11-15 3 15610 2530 5340
    2FG-20 8400 7780-11880 800 22-30 6 11000 4600 4490
    2FC-20 12900 7780-11880 640 22-30 6 15760 4600 5640
    FG-24 2400 9130 3.67 6800 580 15 3 11650 2910 4970
    FC-24 14130 6800 490 18.5 4 16580 2930 7190
    2FG-24 9130 13600 1160 30 6 12710 5430 5690
    2FC-24 14130 13700 910 37 8 17710 5430 8000
    2FG-30 3000 12500 3.2 23300 1785 40 8 16020 6640 6350
    2FC-30 14300 23300 1410 ---- ---- 17091 ---- 8680
