Jaw Crusher

Jaw Crusher

Supply Ability: 15 Sets per Month

Production capacity: 5-1200t/h

Port: Qingdao,Tianjin, Shanghai or others

Feature: simple structure, easy manufacturing, reliable working condition

Features

    Brief Introduction to Jaw Crusher

    Jaw crusher is suitable for primary and secondary crushing of rocks with compressive strength of less than 320 MPa. It is widely used in mining, metallurgy, construction, highway, railway, chemistry industry, etc. All models are available according to your different fineness requirements. According to different models, jaw crusher can be divided into PE jaw crusher and PEX jaw crusher. While according to different sizes, jaw crusher is classified into large jaw crusher and small jaw crusher.

    Jaw Crusher

    Structure of PEX and PE Jaw Crushers

    The PEX and PE jaw crusher mainly consists of the rack, bearing, operating mechanism, transmission mechanism (including eccentric connecting-rod, thrust rod, fly wheel and eccentric shaft), safety device, adjusting gear and so on.

    PE/PEX Jaw Crusher Price

    PE/PEX Jaw Crusher

    Henan Hongxing Mining Machinery Co., Ltd., the professional large and small jaw crusher manufacturer, always provides high quality jaw crushers and provides a full range of quality services for our customers. Welcome customers from all over the world to visit our company and consult PEX and PE jaw crusher price. The price of large jaw crusher and small jaw crusher is also different, customers can choose the suitable one according to specific needs.

    Working Principle of Jaw Crusher

    Jaw Crusher

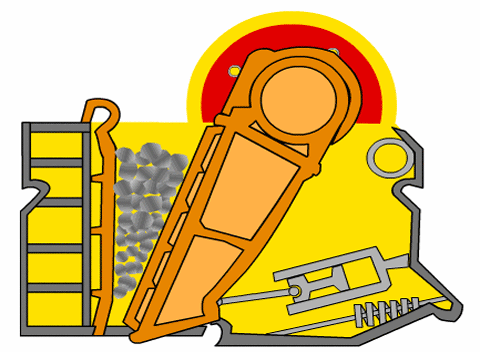

    This series of jaw crushers have a fixed jaw and a movable jaw, with the former fixed in front of the rack and the latter hanging on the mandrel. When the eccentric shaft rotates, the connecting rod moves from top to bottom, which makes the two thrust plates move repeatedly. With the pushing of the thrust plates, the movable jaw hanging on the mandrel can move from side to side. When the movable jaw sways to the fixed jaw, the material falling to the cavity will be crushed by the squeezing of the boards. When the movable jaw leaves the fixed jaw, the crushed material will be discharged from the discharge port under the cavity. Thus, the working of large and small jaw crushers is intermittent, with the processing of crushing alternates with that of discharging. Furthermore, since the movable jaw moves around the mandrel while it is working, the crushing ratio has always been 3 to 6. Due to its simple movement, this type of jaw crusher is also called simple swing type jaw crusher.

    Jaw Crusher

    Jaw Crusher

    Jaw Crusher

    Jaw Crusher

    Jaw Crusher

    Technical Parameters of Jaw Crusher

    Model
    Feed opening
    (mm)
    Max.feeding size
    (mm)
    Adjusting range of discharge opening
    (mm)
    Processing capacity
    (t/h)
    Rotation speed of eccentric shaft
    (r/min)
    Motor power
    (kw)
    Total weight
    (t)
    Dimensions
    (L×W×H)
    (mm)
    PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
    PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
    PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
    PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
    PE-400×600 400×600 340 40-100 16-64 275 6P   30 7 1730×1730×1630
    PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
    PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
    PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
    PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
    PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
    PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
    PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
    PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
    PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
    PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
    PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
    PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
    PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
    PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
    PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
    PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
    PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
