Stone crushing
Hammer Crusher

Hammer Crusher

Supply Ability: 20 Set/Sets per Month

Production capacity: 5-150t/h

Port: Qingdao,Tianjin, Shanghai or others

Feature: Wear resistance, Easy maintenance, Compact structure

Features

    Hammer Crusher

    Hammer crusher has various types and can be classified into single rotor hammer crusher and double rotor hammer crusher according to the number of rotors. It also can be classified into reversible hammer crusher and irreversible hammer crusher in accordance with the direction of the rotation rotor.

    Single-stage Hammer Crusher

    Brief Introduction to Hammer Crusher

    The hammer crusher is developed for dry and wet type crushing of brittle and medium-hard materials for the mining, cement, coal, metallurgic material, construction material, road building, and petroleum and chemical industries. The hammer crusher crushes by the collision between high-speed hammer and materials.

    Operating Principle of Hammer Crusher

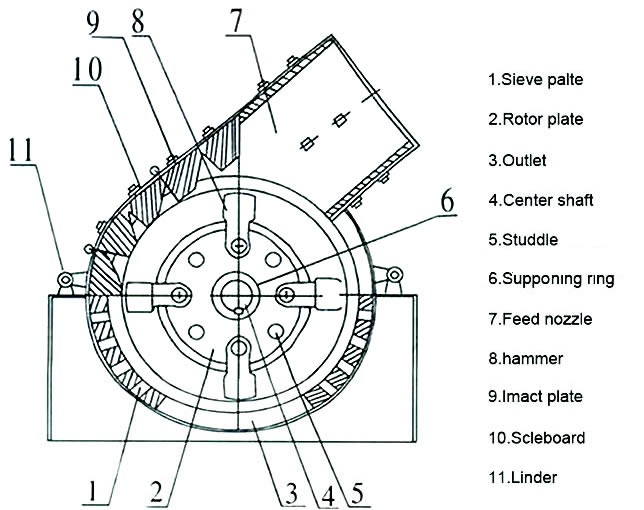

    The main components of the hammer crusher are rotors. The rotors consist of the main axis, disk, pin axis and hammers. The rotors rotate in the crushing cavity driven by the engine. The material falls from the upper feed port and will be crushed with the impacting, hitting, cutting and polishing of the high-speed rotating hammers. The sieve plate is under the rotors. The material smaller than the size of the sieve pit is discharged from the sieve plate. Otherwise, the material will stay on the sieve and will be abraded and hit by the hammers constantly.

    Professional Hammer Crusher Manufacturer in Zhengzhou

    Henan Hongxing Mining Machinery Co., Ltd has been manufacturing hammer crushers for many years. The machine is available in both dry and wet type ones. Based on customers' needs, the grate space can be adjusted.

    Technical Parameters of Single-stage Hammer Crusher

    Specifications
    Feeding Size
    (mm)
    Discharging size
    (mm)
    Capacity
    (m³/h)
    Motor power
    (kw)
    Total weight
    (t)
    Dimensions
    (L×W×H)
    (mm)
    PCΦ400×300
    ≤200
    ≤25
    5-10
    11
    0.8
    900×670×860
    PCΦ600×400
    ≤250
    ≤30
    10-22
    22
    2.26
    1200×1050×1200
    PCΦ800×600
    ≤250
    ≤35
    18-40
    55
    4.8
    1310×1180×1310
    PCΦ1000×800
    ≤350
    ≤35
    25-50
    75
    5.9
    1600×1390×1575
    PCΦ1000×1000
    ≤350
    ≤35
    30-55
    90
    8
    1800×1590×1775
    PCΦ1250×1250
    ≤350
    ≤35
    35-65
    132
    14
    2060×1600×1890
    PCΦ1400×1400
    ≤350
    ≤35
    50-100
    280
    32
    2365×1870×2220
    PCΦ1600×1600
    ≤350
    ≤35
    100-150
    480
    37.5
    3050×2850×2800
