Stone crushing
Impact Crusher

Impact Crusher

Supply Ability: 20 Set/Sets per Month

Production capacity: 30-550t/h

Port: Qingdao,Tianjin, Shanghai or others

Feature: small size, simple structure, high crushing ratio, low energy consumption, high production capacity

Features

    The China impact crusher, also called impact breaker or impact stone crusher, is new type highly-efficient crushing equipment with the features of small size, simple structure, high crushing ratio (as much as 40), low energy consumption, strong production ability, even particle size, etc. As a very promising machine, the impact crusher has been applied in some ore dressing factories owing to the appearance of highly-abrasive material.

    The mineral impact crusher can handle material with side length ranging from 100 to 500 mm. The highest compressive strength of mineral impact crusher can reach 350 MPa.

    This series of impact crushing machines are the new generation mineral impact crushers which have combined advanced techniques at home and abroad with the actual mining conditions. Henan Hongxing adopts the latest manufacturing technology and unique structure design, producing products of cubical shape without tension and crack.

    Impact Crusher

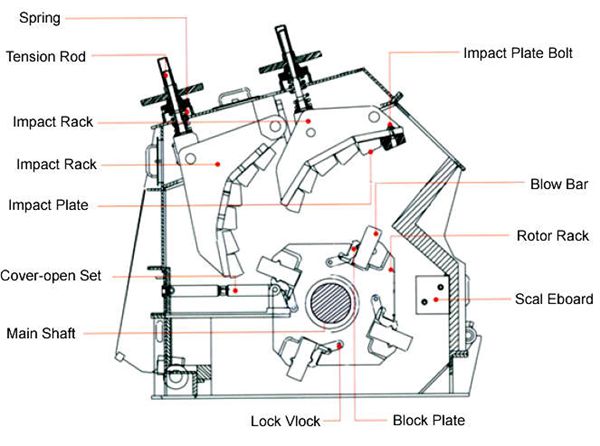

    Working Principle of Impact Breaker

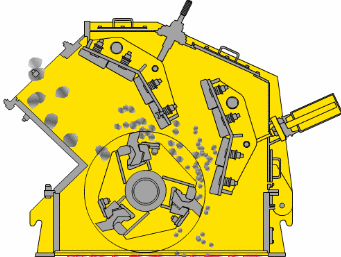

    The material falls to the high-speed rotating turn plate. With the effect of strong centrifugal force, the material in the plate hammer function area will impact with hammers on the rotor. Then the material will be thrown into the counter attack device for second crushing. After that, the materials will be rebounded to the former area from the impact lining board for further crushing. This process will be repeated until desired purpose is achieved. The finished products will be discharged from the discharge port. To control the granularity and the shape of the material, you can adjust the space between the impact rack and the rotor.

    Hongxing Impact crusher for sale with good quality

    1. The impact crusher is with unique simple structure, keyless connection.

    2. Impact breaker is with high-chromium plating hammer and special impact liner plate.

    3. The impact breaker is capable of highly efficient hard rock crushing while saving energy.

    4. The final product of Impact crushing machine is in the shape of a cube, the discharge grain size is adjustable to simplify the crushing circuit.

    5. Easy maintenance, reliable performance.

    Technical parameters of Impact crusher

    Model Specifications
    (mm)
    Feed opening
    (mm)
    Max.feeding side length
    (mm)
    Capacity
    (t/h)
    Power
    (kw)
    Total weight
    (t)
    Dimensions
    ( L×W×H)
    (mm)
    PF-1007 Φ1000×700 400×730 300 30-70 45 12 2330×1660×2300
    PF-1010 Φ1000×1050 400×1080 350 50-90 55 15 2370×1700×2390
    PF-1210 Φ1250×1050 400×1080 350 70-130 110 17.7 2680×2160×2800
    PF-1214 Φ1250×1400 400×1430 350 100-180 132 22.4 2650×2460×2800
    PF-1315 Φ1320×1500 860×1520 500 130-250 220 27 3180×2720×2620
    PF-1520 Φ1500×2000 830×2040 700 300-550 400 50.6 3959×3564×3330
