MBS Type Rod Mill

MBS Type Rod Mill

Feeding granularity: ≤25-≤50mm

Production capacity: 0.62-180t/h

Applicable range: This machine can be widely applied in some fields such as refractory, chemical industry, metallurgy, glass and some other industries that have the higher requirement on the uniformity of the finished product.

Features

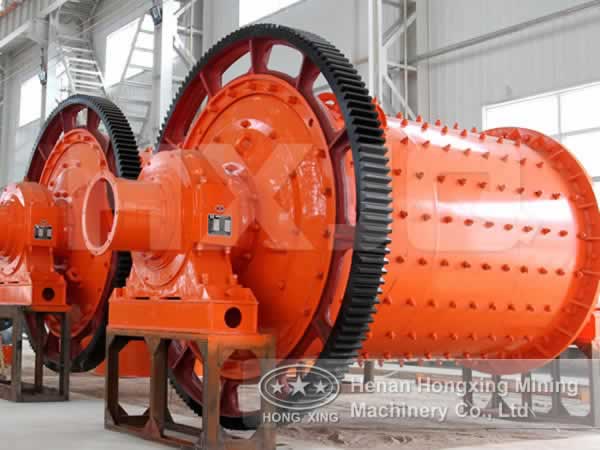

    MBS Type Rod Mill

    Rod mill is available in both dry and wet types, so users can choose any type depending on the actual conditions. The company adopts the advanced output controllable technology and changes the traditional surface contact into line contact, making the output granularity evener.

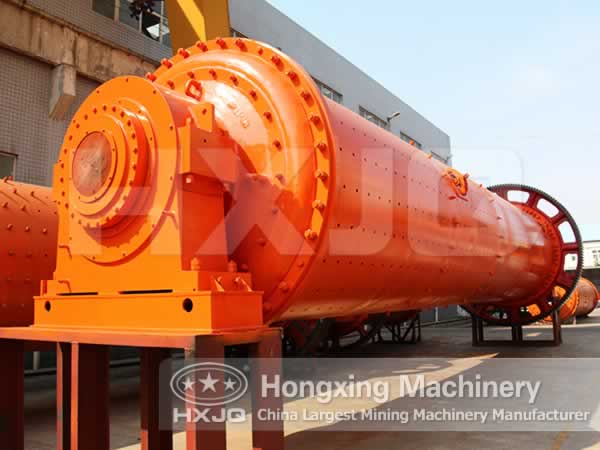

    MBS Type Rod Mill

    MBS Type Rod Mill

    Working Principle of Rod Mill

    The rod mill drives the cylinder in rotation by the engine through the rotation of the reducer and big gears around with the deceleration or through low speed synchronous motor driving directly peripheral big gears. The machine is equipped with appropriate grinding medium-steel bar, which is raised to a certain height under the centrifugal force and friction force. The materials to be crushed are continuously added to the cylinder, shattered by the rotating grinding medium and discharged for the next procedure by the overflow and the power produced by continuously feeding in materials.

    Professional Manufacturer

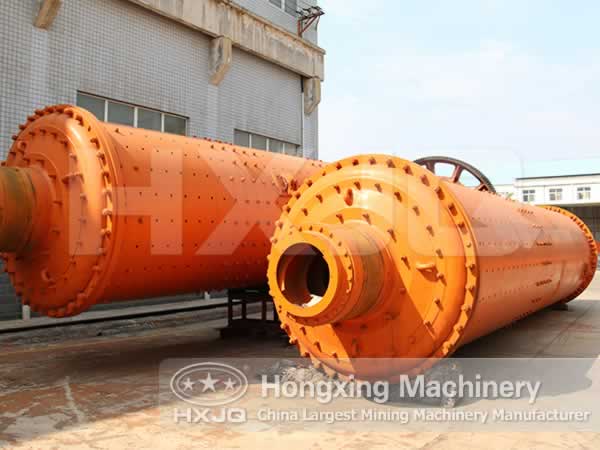

    MBS Type Rod Mill

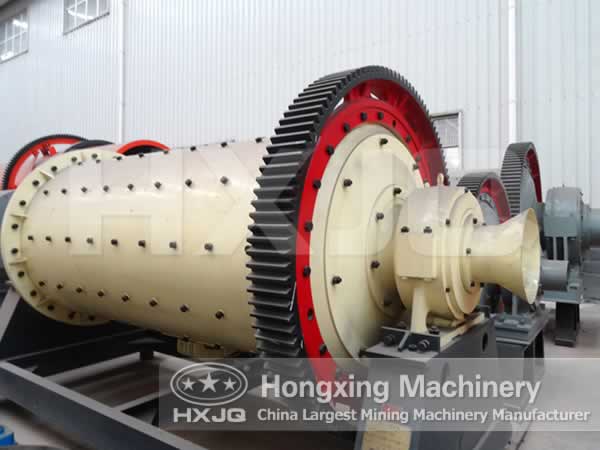

    MBS Type Rod Mill

    MBS Type Rod Mill

    Henan Hongxing Mining Machinery Co., Ltd. has won high reputation both at home and abroad. We specialize in high quality products and whole-hearted services. Everyday customers come and make orders.

    Technical Parameters of MBS Type Rod Mill

    Model
    Shell Specifications (mm)
    Shell rotation speed
    (r/min)
    Feeding size
    (mm)
    Discharging size
    (mm)
    Processing capacity
    (t/h)
    Power
    (kw)
    Total weight
    (t)
    Diameter Length
    MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
    MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
    MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
    MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
    MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
    MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
    MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
    MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
    MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
    MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
    MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
