Concentrator Table

Concentrator Table

Supply Ability: 40 Set/Sets per Month

Certificate: ISO9001:2008

Production capacity: 10-60t/h

Feature: Low energy consumption, Good efficiency, Simple operation

Features

    Brief Introduction

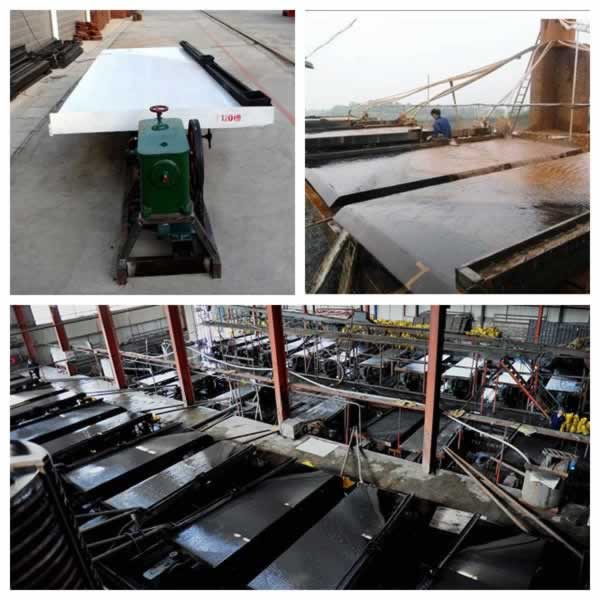

    Concentrator table is an ore dressing machine for fine materials, which works under gravity. It is widely used in selection of tin, tungsten, gold, silver, lead, zinc, tantalum,niobium, iron, manganese, ferrotitanium and coal. So, it also can be called gold shaking table shaker, mineral separating shaking table and  mineral processing shaking table.

    Concentrator Table

    The Structure and the Working Principle

    The ore dressing concentrator table is usually composed of the bed surface, the frame and the driving mechanism. In addition, there is a water tank, a feed chute, and rack. The whole bed surface is supported or hoisted by the rack. The rack is equipped with adjustable slope device. The concentrator can make the particles move along different paths due to different intensity and granularity and will be discharged from the edges of the bed surface. Since the ore line is very long, products with different grades will be classified, such as concentrate, minor-concentrate, tailings, etc.

    Technical parameters of Concentrator table

    Name Grit
    concentrator
     table
    Fine sand
    concentrator
     table
    Sludge
    concentrator
     table
    Bed surface
    Dimensions
    Length
    (mm)
    4450 4450 4450
    Driving
    part Width
    (mm)
    1855 1855 1855
    Concentrate
    part Width
    (mm)
    1546 1546 1546
    Max.feeding
    size(mm)
    2 0.5 0.15
    Feeding
    amount
    (t/d)
    30-60 10-20 15-25
    Feeding
    thickness
    (%)
    25-30 20-25 15-25
    Stroke
    (mm)
    16-22 11-16 8-16
    Frequency
    (f)
    45-48 48-53 50-57
    Bed surface
    Water quantity
    (t/d)
    80-150 30-60 10-17
    Bed surface
    Horizontal
    obliquity(°)
    2.5-4.5 1.5-3.5 1-2
    Bed surface
    Portrait
    obliquity(%)
    1.4 0.92 ----
    Table board
    corner(°)
    32-42 40 42
    Concentrating
    area(㎡)
    7.6 7.6 7.6
    Bed surface
    Length ratio
    2.6 2.6 2.6
    Shape of
    side-bed
    surface
    Rectangle Zigzag Triangle
    Motor
    power(kw)
    1.1 1.1 1.1
    Transmission
    device
    Eccentricity
