Belt Conveyor

Belt Conveyor

Supply Ability: 35 Set/Sets per Month
Port: Qingdao,Tianjin, Shanghai or others
Feature: Easy to use
Certificate: ISO9001:2008

Features

    The belt conveyor has the features of large transportation amount, simple structure, convenient maintenance and component standardization.

    The Structure of Belt Conveyor

    The belt conveyor is composed of rack, conveyor belt, belt rollers, tensioning devices, transmission equipment, etc. The body is connected by high quality steel plates, forming a rack by the difference in height of the front leg and the back leg, tilted at an angle. The rack is equipped with belt rollers and supporting rollers, used for driving and supporting conveyor belt. There are reduction motor driven and electric roller driven machines.

    Belt Conveyor

    An Overview of Belt Conveyor

    The belt conveyor has the features of large transportation amount, simple structure, convenient maintenance and component standardization. And it is widely used for conveying materials in mining, metallurgy, coal, chemical industry, casting, building materials, production line, hydroelectric station construction sites and other industries for transporting loose materials and packed products. Based on the production process, it can convey materials singly or with other equipment to meet different needs.

    We provide belt conveyors which can transport all kinds of materials economically and conveniently.

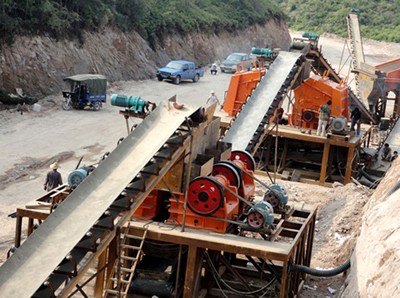

    Application

    Belt Conveyor

    Belt Conveyor

    Belt Conveyor

    In industrial production, belt conveyor can act as a tie linking all production machinery to achieve continuous and automatic production and to improve productivity and lessen labor intensity. The belt conveyor moves based on friction transmission principle. It features long transmission distance, smooth conveying, little noise and low energy consumption.

    The belt conveyor can be used within the environmental temperature range of -20 ℃ through + 40 ℃ and materials temperature below 50 ℃.

    Professional Belt Conveyor Supplier or Manufacturer

    Belt conveyor suppliers are numerous. To choose a professional supplier that provides reasonable price and sound quality is very significant to users. As a professional belt conveyor supplier, the products supplied by Henan Hongxing have been sold to 75 countries. The belt conveyor price and quality are widely recognized. We always stick to be your satisfying partner.

    Technical Parameters of Belt Conveyor

    Belt width(mm) Conveying length(m)
    Power(kw)
    Conveying speed(m/s) Conveying amount(t/h)

    500

    <=12
    3
    12-20
    4-5.5
    20-30
    5.5-7.5

    1.3-1.6

    78-191

    650

    <=12
    4
    12-20
    5.5
    20-30
    7.5-11

    1.3-1.6

    131-323

    800

    <=6
    4
    6-15
    5.5
    15-30
    7.5-15

    1.3-1.6

    278-546

    1000

    <=10
    5.5
    10-20
    7.5-11
    20-40
    11-22

    1.3-2.0

    435-853

    1200

    <=10
    7.5
    10-20
    11
    20-40
    15-30

    1.3-2.0

    655-1284

    1400

    <=10
    11
    10-20
    18.5
    20-40
    22-37

    1.3-2.0

    893-1745

    1600

    <=10
    15
    10-20
    22
    20-40
    30-45

    1.3-2.0

    1069-2195
