Vibrating Screen

Supply Ability: 20 Set/Sets per Month

Production capacity: 8-680m3/hMonth

Certificate: ISO9001:2008

Feature: Reliable structure, high screen efficiency, low noise, durable usage, easy maintenance

Features

    Introduction to Vibrating Screen

    There are two kinds of vibrating screens: the linear vibrating screen and the circular vibrating screen. The linear vibrating screen is a kind of highly efficient screening facility. It has been widely used in mining, coal, smelting, building materials, fireproofing, light industry, chemical industry and others. The circular vibrating screen is another new type highly efficient screening machine which makes circular movements. This type of vibrating screen applies the cylindrical eccentric shaft exciter. It has been widely used in materials screening in mining, building materials, traffic, energy resources, chemistry industry, etc.

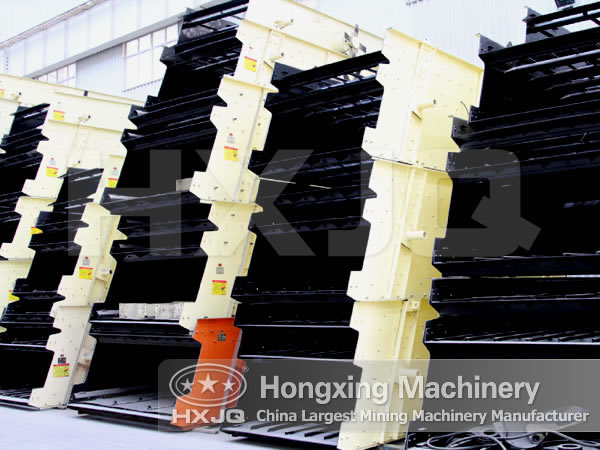

    Vibrating Screen

    Structure of Vibrating Screen

    The linear vibrating screen is mainly composed of screening box, screening mesh, vibration motor, electrical pedestal, vibration reduction spring and the rack.

    1. The screening box: the main component of the machine, soldered by steel plates with different degrees of thickness, certain strength and stiffness.

    2. Screening mesh: there are low carbon steel, copper, bronze, stainless steel wire type meshes.

    3. Vibration motor: (usage and maintenance methods as shown in the instructions).

    4. Electrical pedestal: when installing the vibration motor, the connective screws should be tightened, especially during the first three trial days in case accidents occur.

    5. Vibration reduction spring: prevent vibration from passing onto the ground and support the full weight of the screening box. When installing, the spring must be vertical to the ground.

    6. The rack: composed of four pillars and two steel channels supporting the screening box; should also be vertical to the ground while the two channels should be parallel to each other.

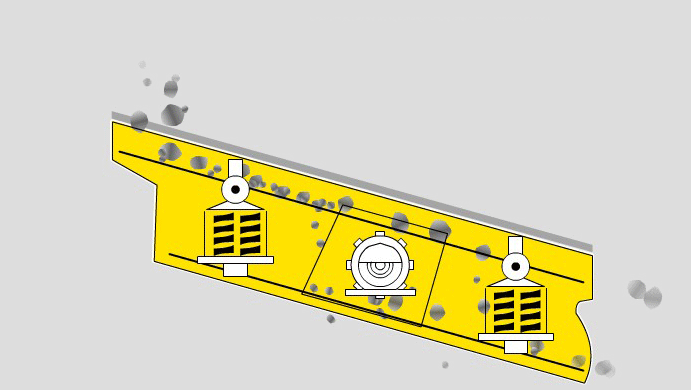

    Working Principle of Vibrating Screen

    The linear vibrating screen is driven by two vibration motors. When the motors rotate simultaneously in the opposite direction, the exciting force produced by the eccentric block offsets in the direction parallel to axis and joins in the direction vertical to the axis. So the movement path is a straight line. The two motors form an angle to the screening deck. Under the exciting force and gravity, materials are thrown up forward by leaps and bounds for linear movement so as to achieve the goal of screening and classification.

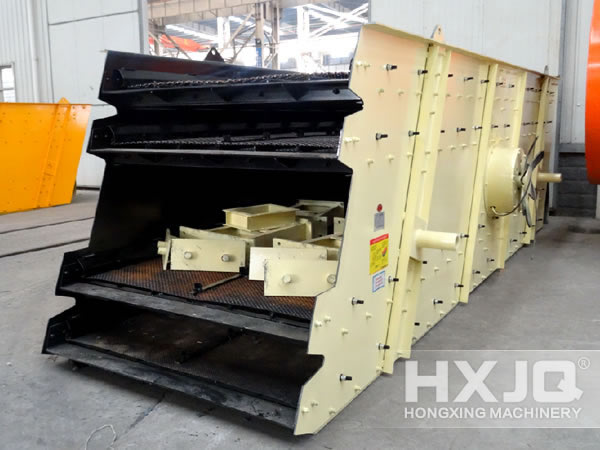

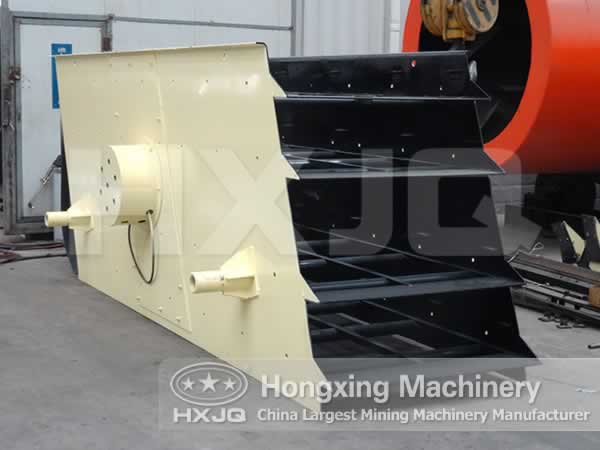

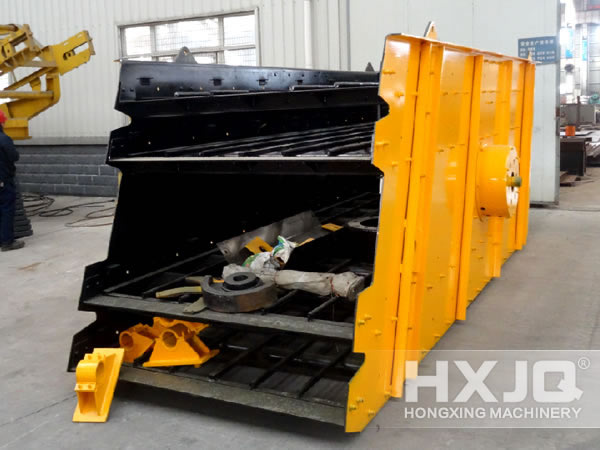

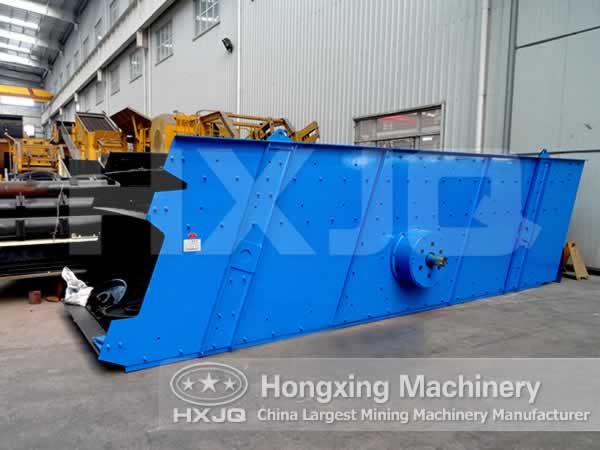

    The circular vibrating screen is mainly made up of the screening box, exciter, suspension (or supporting) device and motor, etc. The motor drives the exciter axis through the triangle belt. With the effect of the centrifugal inertia force caused by the imbalance of weight, the screening box starts vibrating. Change the eccentric weight, different amplitudes can be achieved.

    Technical parameters of Circular vibrating screen

    Model
    Sieve layer
    Sieve area
    (m²)
    Mesh size
    (mm)
    Max feeding size
    (mm)
    Processing capacity
    (m³/h)
    Vibrating Frequency
    (r/min)
    Double amplitude
    (mm)
    Motor power
    (kw)
    Sieve obliquity
    (°)
    Sieve specification
    (mm)
    Total weight
    (kg)
    Dimensions
    (L×W×H)
    (mm)
    2YK1225
    2
    6
    4-50
    400
    8-60
    800-970
    8
    5.5
    20
    1200×2500
    3500
    2930×1860×870
    3YK1225
    3
    9
    4-50
    400
    10-70
    800-970
    8
    5.5
    20
    1200×2500
    3850
    3070×1860×1210
    2YK1230
    2
    7.2
    4-50
    400
    12-78
    800-970
    8
    7.5
    20
    1200×3000
    4200
    3430×1860×870
    3YK1230
    3
    10.8
    4-50
    400
    13-80
    800-970
    8
    7.5
    20
    1200×3700
    4600
    3570×1860×1210
    2YK1237
    2
    8.88
    4-50
    400
    15-86
    800-970
    8
    7.5
    20
    1200×3700
    4600
    4050×1860×870
    3YK1237 3 13.22 4-50 400 16-90 800-970 8 7.5 20 1500×3500 5200 4270×1860×1210
    2YK1535 2 10.5 5-50 400 20-125 800-970 8 11 20 1500×3500 5890 4120×2210×1230
    3YK1535
    3
    15.75
    5-50
    400
    21-125
    800-970
    8
    11
    20
    1500×3500
    6700
    4360×2210×1610
    2YK1545
    2
    13.5
    5-50
    400
    22-150
    800-970
    8
    15
    20
    1500×4500
    6330
    5120×2210×1230
    3YK1545
    3
    20.25
    5-50
    400
    22-150
    800-970
    8
    15
    20
    1500×4500
    6800
    5360×2210×1610
    4YK1545 4 27 5-50 400 22-155 800-970 8 18.5 20 1500×4500 7800 5930×2210×2060
    2YK1548
    2
    14.4
    5-50
    400
    22.5-162
    800-970
    8
    15
    20
    1500×4800
    6980
    5420×2210×1230
    3YK1548
    3
    21.6
    5-50
    400
    22.5-162
    800-970
    11
    15
    20
    1500×4800
    7700
    5660×2210×1610
    4YK1548
    4
    28.8 5-50 400 22.5-162 800-970 8 18.5 20 1500×4800 8700 6230×2210×2060
    2YK1848
    2
    17.28
    5-80
    400
    25-206
    750
    8
    15
    20
    1800×4800
    9080
    5420×2550×1420
    3YK1848
    3
    25.92
    5-80
    400
    32-276
    750
    8
    18.5
    20
    1800×4800
    9600
    5660×2550×1780
    4YK1848
    4 34.54 5-80 400 32-285 750 8 22 20 1800×4800 11100
    6290×2550×2160
    2YK1854
    2
    19.44
    5-80
    400
    32-312
    800-970
    8
    18.5
    20
    1800×5400
    10150
    5960×2550×1420
    3YK1854
    3
    29.16
    5-80
    400
    32-312
    800-970
    8
    22
    20
    1800×5400
    10840
    6260×2550×1780
    4YK1854
    4 38.88 5-80 400 32-336 800-970 8 30 20 1800×5400 12840
    6830×2550×2160
    2YK2160
    2
    25.2
    5-100
    400
    50-475
    970
    8
    30
    20
    2100×2600
    11780
    6720×2840×1530
    3YK2160 3 37.8 5-100 400
    50-475
    970 8 30 20 2100×2600 12800 7030×2840×1910
    4YK2160
    4
    50.4
    5-100
    400
    50-497
    970
    8
    37
    20
    2100×2600
    14800
    7300×2840×2380
    2YK2460
    2
    28.8
    5-100
    400
    65-550
    970
    8
    37
    20
    2400×6000
    15600
    7020×3140×1530
    3YK2460
    3
    43.2
    5-100
    400
    70-620
    970
    8
    37
    20
    2400×6000
    17600
    7300×3140×1910
    4YK2460
    4 57.6 5-100 400 80-680 970 8 45 20 2400×6000 19600 7600×3140×2380
    2YK3072 2 14.3 5-100 400 200-700 750 8 22×2 20 3000×7200 23600 7200×4520×4184
    3YK3072 3 21.4 5-100 400 230-800 750 8 22×2 20 3000×7200 25500 7200×4520×4684
