Vibrating Feeder

Vibrating Feeder

Supply Ability: 25 Set/Sets per Month

Model Number: GZD,ZSW

Production Capacity: 80-800t/h

Feature: Stable vibration, reliable operation

Features

    Vibrating Feeder Introduction

    Vibrating feeder is also named vibratory feeder. Vibrating feeder is a kind of linear feeding equipment. It features smooth vibrating, reliable operation and long service life. They are widely used in mining, building-materials, silicate and chemical industry in the crushing and screening plants.

    Henan Hongxing Mining Machinery is a well established manufacturer and supplier of vibrating feeders, such as, the vibrating grizzly feeder and the ore vibrating feeder, which are diligently designed by the experts. These vibrating feeders are made of high tensile steel that assures their reliability and durability. If you are interested in China vibrating feeder, please come to visit Henan Hongxing.

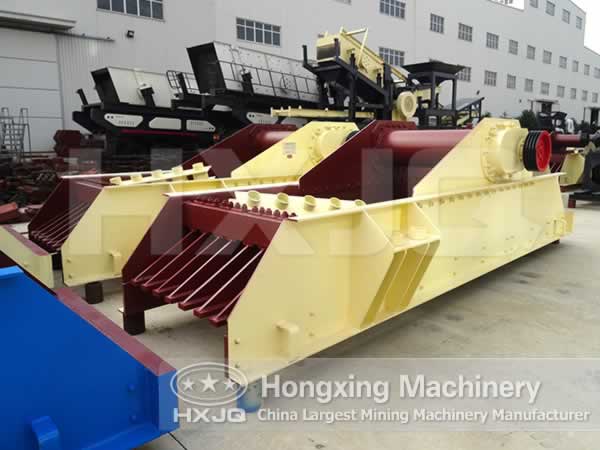

    Vibrating Feeder

    China Vibrating Feeder Working Principle

    When the power is on, the electric current passes through the excitation coils which creates a magnetic field. The magnetic force changes into vibrating force, which forces the feeding trough body to make simple harmonic vibration or similar to simple harmonic vibration in a certain direction. When the acceleration of its vibration achieves certain value, the materials will make continuous and small throws or slides along the transmission direction in the feeding trough body, which causes the forward motion and transmission of the materials.

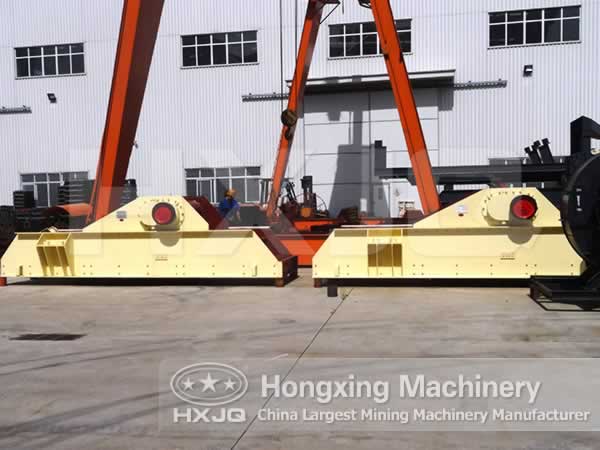

    Vibrating Feeder

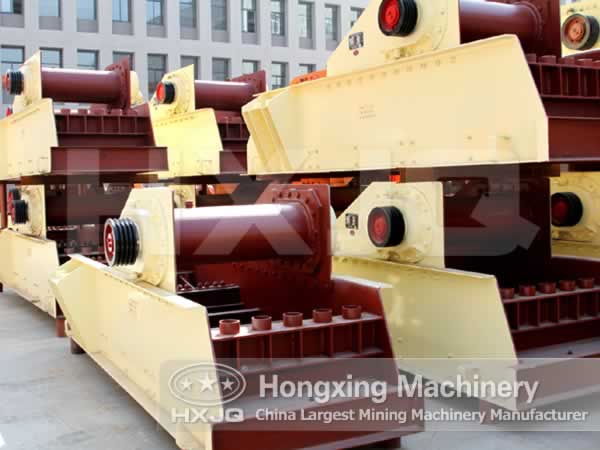

    Vibrating Feeder

    Technical Parameters of Vibrating Feeder

    Model Max.
    Feeding
    Size
    (mm)
    Processing
    Capacity
    (t/h)
    Motor
    Power
    (kw)
    Obliquity
    of material
    trough
    (°)
    Trough
    size
    (mm)
    Dimensions
    (L×W×H)(mm)
    GZD-650×2300 300 80-100 1.1×2 10-20 650×2300 2300×1360×780
    GZD-750×2500 350 100-130 1.5×2 10-20 750×2500 2500×1460×780
    GZD-850×3000 400 120-150 3×2 10-20 850×3000 3110×1800×1600
    GZD-1000×3600 500 150-200 3.7×2 10-20 1000×3600 3850×1950×1630
    GZD-1100×3600 580 240-300 3.7×2 10-20 1100×3600 3600×2050×1660
    GZD-1300×3600 650 450-600 7.5×2 10-20 1300×3600 3900×2350×1750
    GZD-1500×3600 1050 450-1000 10×2 10-20 1500×3600 3900×2000×1750
    GZD-2000×3600 1200 550-1000 22×2 10-20 2000×3600 3600×2000×1750
    GZD-2500×5000 1500 650-1500 11 10-20 2500×5000 5000×2500×1800
    ZSW-380×95 500 100-180 11 0-10 3800×960 3800×1640×1320
    ZSW-490×110 630 150-400 15 0-10 4900×1100 4980×1830×1320
    ZSW-490×130 750 400-700 22 0-10 4900×1300 4980×2580×2083
    ZSW-600×130 750 400-700 22 0-10 6000×1300 6082×2580×2083
    ZSW-600×150 800 500-900 30 0-10 6000×1500 6086×2662×1912
    ZSW-600×180 800 700-1500 37 0-10 6000×1800 6310×3262×2230
