Bucket Elevator

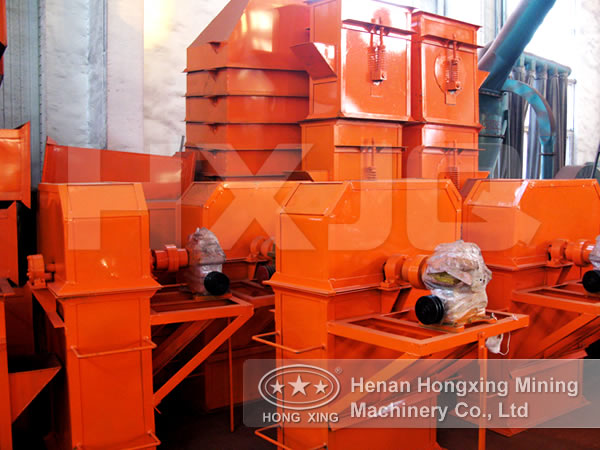

Bucket Elevator

The machine is applicable for conveying powder, grain and block materials, such as coal, cement, block, sand, clay and ore. The bucket elevator is allowed to convey materials with high temperature when armed with special circle chain structure.

Features

    Features of Bucket Elevator

    The machine has the advantages of large conveying capacity, high hoisting height, stable and reliable running and long service life.

    Bucket Elevator

    Application of Bucket Elevator

    The machine is applicable for conveying powdery, granular and lumpy materials, such as coal, cement, block, sand, clay and ores. The bucket elevator is capable of conveying materials with high temperature when armed with special circle chain structure.

    Technical Parameters of Bucket Elevator

    Technical parameters of ring chainbucket elevator

    Specification Max.lifting height
    (m)
    Conveying capacity
    (m³/h)
    Max.size
    (mm)
    Pitch of buckets
    (mm)
    Motor prower
    (kw)
    TH160 25 7-12 15-20 400 3-4
    TH200 28 8-15 20-30 500 3-5.5
    TH250 30 10-25 25-35 500 4-7.5
    TH300 30 25-35 30-40 500 5.5-11
    TH315 40 30-40 35-45 512 5.5-15
    TH400 40 45-60 40-55 512 11-22
    TH500 40 65-80 50-60 512 15-30
    TH630 40 100-120 60-65 688 18.5-37
    TH800 40 130-150 65-75 920 22-45

    Technical parameters of wire belt bucket elevator

    Specification Max.lifting height
    (m)
    Conveying capacity
    (m³/h)
    Max.size
    (mm)
    Bucket Volume
    (L)
    Motor prower
    (kw)
    TDG160 80 34 0-20 2.6 2.2-11
    TDG200 80 45 0-25 4.1 3-15
    TDG250 80 71 0-30 6.5 5.5-22
    TDG315 80 101 0-35 10 7.5-30
    TDG400 80 158 0-40 16 15-45
    TDG500 80 218 0-45 25 18.5-55
    TDG630 80 345 0-50 40 30-90
    TDG800 80 491 0-50 61 45-132

    Plate chain bucket elevator

    Specification Max.lifting height
    (m)
    Max.lifting capacity
    (m³/h)
     Percentageallowed
    (%)
    Pitch
    (mm)
    Motor power
    (kw)
    10 25 50 75 100
    Max.size(mm)
    NE15 40 16 65 50 40 30 25 101.66 1.5-4
    NE30 59 31 90 75 58 47 40 152.4 2.2-7.5
    NE50 62 60 90 75 58 47 40 152.4 3-15
    NE100 58 110 130 105 80 65 55 200 7.5-30
    NE150 65 170 130 105 80 65 55 200 11-37
    NE200 73 220 170 135 100 85 70 250 18.5-75
    NE300 61 320 170 135 100 85 70 250 22-75
    NE400 47 420 205 165 125 105 90 300 45-90
    NE500 58 500 240 190 145 120 100 300 45-132
