Powder making
Raymond Mill

Raymond Mill

Supply Ability:≤15-≤30mm

Production capacity:2-120t

Range of application:Barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite

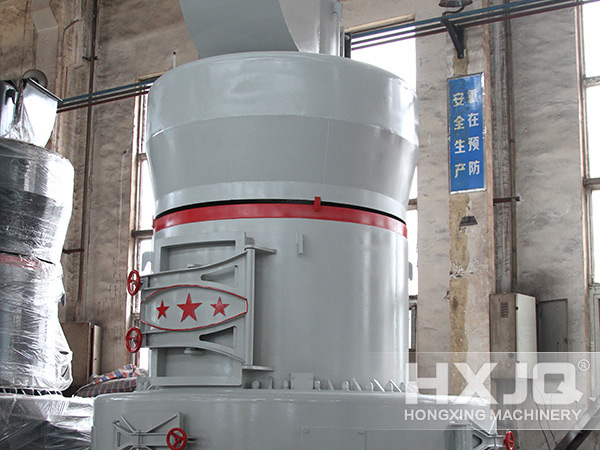

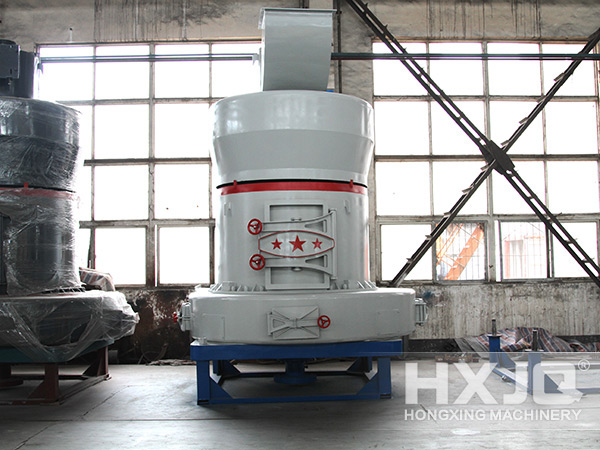

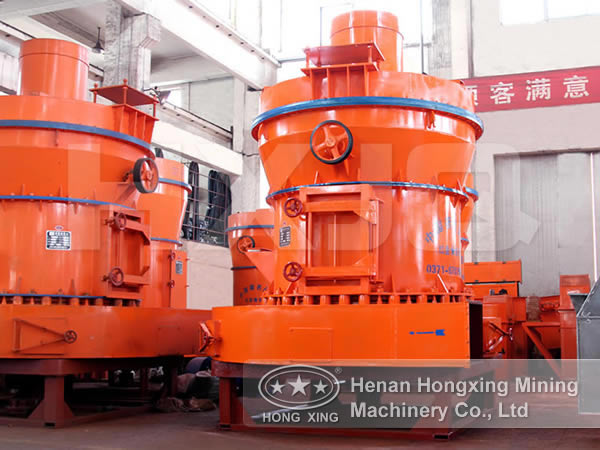

    Introduction to China Raymond Mill

    The china raymond mill is designed by adopting advanced structure of similar products at home and abroad and bettering them in the industry. The raymond mill has higher grinding efficiency and lower energy consumption, smaller floor area and investment than that of the ball mill.

    The long replacement cycle of the grinding roll and the grinding ring eliminates the shortcomings of the centrifugal crushing machine. The winnowing airflow of the machine works circularly from the draught fan, to the mill shell, cyclone separator and then back to the draught fan again. Therefore, the dust is less than that produced by the high speed centrifugal crusher, resulting in a clean operating workshop without polluting the environment.

    Raymond Mill

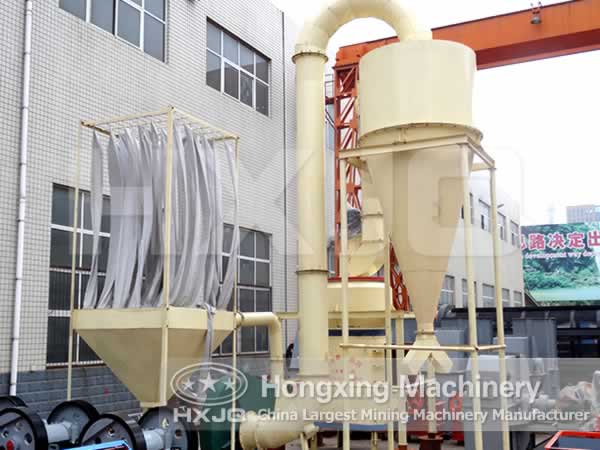

    Winnowing Process of Grinding plant

    After the materials are ground, the host will inhale the wind into the cabinet inside the host for blowing powder. The powder is separated by the analyzer above the grinding chamber, with the over-thick materials being crushed again in the grinding chamber and the qualified materials getting into the cyclone collector following with the wind. After collected, the materials are discharged by the powder discharge port as finished products.

    Raymond Mill

    Raymond Mill

    Raymond Mill

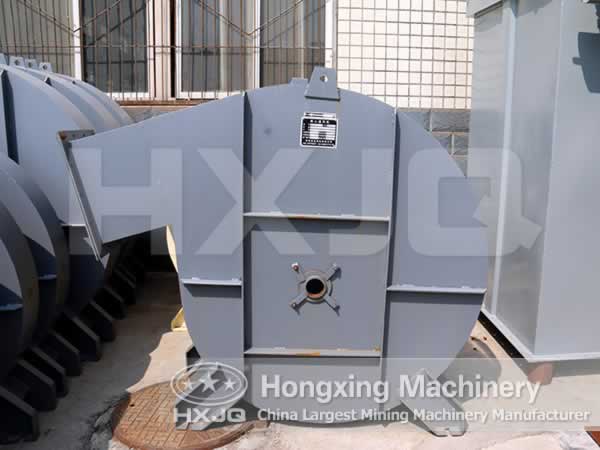

    The current returns to the draught fan from the return air duct on top of the large whirlwind collector. It forms a circular path and flows under negative pressure. The extra wind will be discharged from exhaust pipeline between the draught fan and the host to the small whirlwind collector for purification treatment.

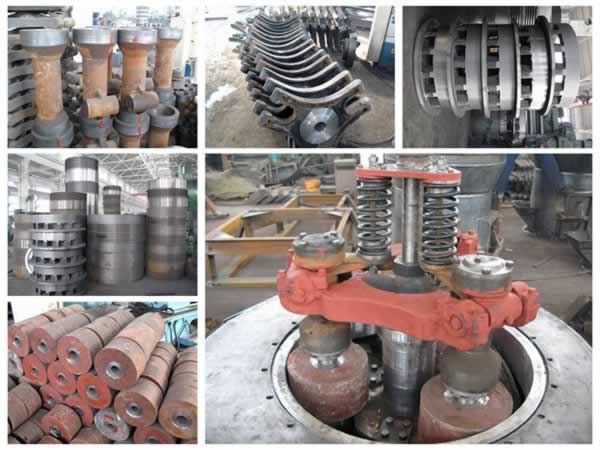

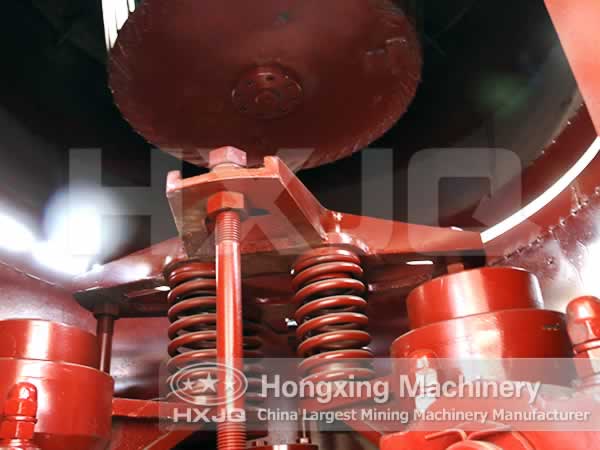

    When working, the to-be-crushed materials of Raymond grinding mill are added to the machine from the feeding port on the side of the housing. Relying on the grinding roller device hanging on the plum flower frame on the host, it revolves around the vertical axis during its self rotation. Due to the role of rotating centrifugal force, the grinding roll swings outside, tightly pressing the grinding ring, moving the materials scooped up by the shovel knife to the place between the grinding roller and grinding ring, and thus the purpose of crushing materials can be achieved.

    Technical Parameters of Raymond mill

    Model 4525 4119
    Feeding Size(mm) ≤30 ≤25
    Output Size(mm) 0.044-0.173 0.044-0.173
    Shift Output of Different Material Fineness(t) 16-176 8-78
    Rotation Speed of Central Shaft(r/min) 82 105
    Ring Diameter(mm) 1770 1400
    Roller Diameter(mm) 450 410
    Roller Height(mm) 250 190
    Main Motor Y315M-4-132 Y280S-4-75
    Fan Motor Y315M-4-132 Y280S-4-75
    Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
