Stone crushing
Roller Crusher

Roller Crusher

Supply Ability: 20 Set/Sets per Month

Production capacity: 5-100t/h

Port: Qingdao,Tianjin, Shanghai or others

Feature: Simple structure, takes up smaller space

Features

    Introduction to China Double Roller Crusher

    The china double roller crusher has wide application in the industries of mining, building material, chemical industry, metallurgy, etc. The roller crusher can crush material with medium hardness, such as mineral, rock, coke, coal, slag, scoria, fire-proof material, into secondary or fine granularity. Roll crusher can be divided into double roll crusher and toothed roll crusher. Double roller crusher is a kind of roll crusher that has two crushing rollers. Toothed roll crusher has shape teeth on its crushing rollers

    Roller Crusher

    Main Application of Double Roll Crusher

    Roll crusher is mainly used for the crushing of medium or low-hardness mine and rock, chemical, cement and building material. Due to the small roller surface of roll crusher, it is also known as smooth roll crusher.

    Roller Crusher

    Roller Crusher

    Roller Crusher

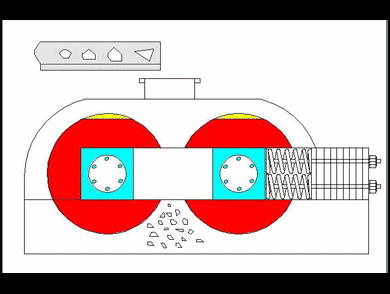

    Working Principle of Roller Crusher

    The fixed part and movable part of roller crusher are driven by the motor via reducer and v-belt. The raw material falls into the part between the two rollers from inlet of the machine. The two rollers rotate inward simultaneously. The material is crushed and ground, and then the end products come out from the bottom of this crusher.

    Roller Crusher

    Technical Parameters of Smooth Roll crusher

    Model 2PG0425 2PG0640 2PG0740 2PG0850 2PG1060 2PG1260 2PG1560
    Roller diameter(mm) Ф400 Ф610 Ф700 Ф800 Ф1000 Ф1200 Ф1500
    Roller width(mm) 250 400 400 500 600 600 600
    Input Size(mm) ≤25 ≤25 ≤25 ≤25 ≤30 ≤30 ≤30
    Discharging Gate(mm) 2-8 2-8 2-8 2-8 2-10 2-10 2-10
    Processing capacity(t/h) 5-10 10-20 15-30 20-40 30-50 40-70 60-110
    Power Models Y132M-6 Y180L-6 Y200L-4 Y225M-4 Y250M-4 Y315M-6 Y315L-6
    Motor power(kw) 5.5×2 15×2 30×2 45×2 55×2 75×2 110×2
    Total weight(t) 2.2 5.9 9.8 13.5 17.2 28.5 39.3
