Introduction to the Aggregate Crushing and Screening Plant

Date:09/19/2012 05:06:29

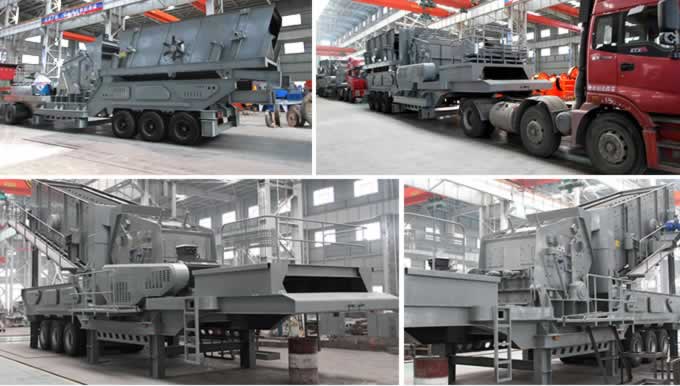

The jaw crushers may be a component of a crushing and screening plant. The plant must be set up on firm level ground and as near as possible to the source of material to be processed and positioned so the conveyors may expel the processed aggregate to the desired location for stockpiling or hauling. A typical crushing and screening plant layout where the jaw crusher may be utilized as a component. The positions of the various components may be changed as required. For example, only the final discharge conveyor is absolutely necessary to operation; the remaining three components indicated are illustrated only where the conveyors can be used at the discretion of the operator and crew. The power source can be either a generator set that will meet the requirements or powerline current.

Crushing and Screening Plant Identification and tabulated date:

The jaw crusher has 12 identification and instruction plates.

(1) Corps of engineers data plate. Located on the left front of the jaw crusher frame. Provides the description, serial number, manufacturer, model, and dimensions of the jaw crusher.

(2) Engine identification plate. Located on the left side of the engine. Provides manufacturer, model, and serial number.

(3) Transportation data plate. Located on the left front of the jaw crusher frame. Provides center of gravity bogie weight and axle weight.

(4) Power takeoff clutch identification and instruction data plate.located on top of the power takeoff housing at the rear of the engine. Provides the manufacturer, model, serial number, operation, adjustment and lubrication instructions.
